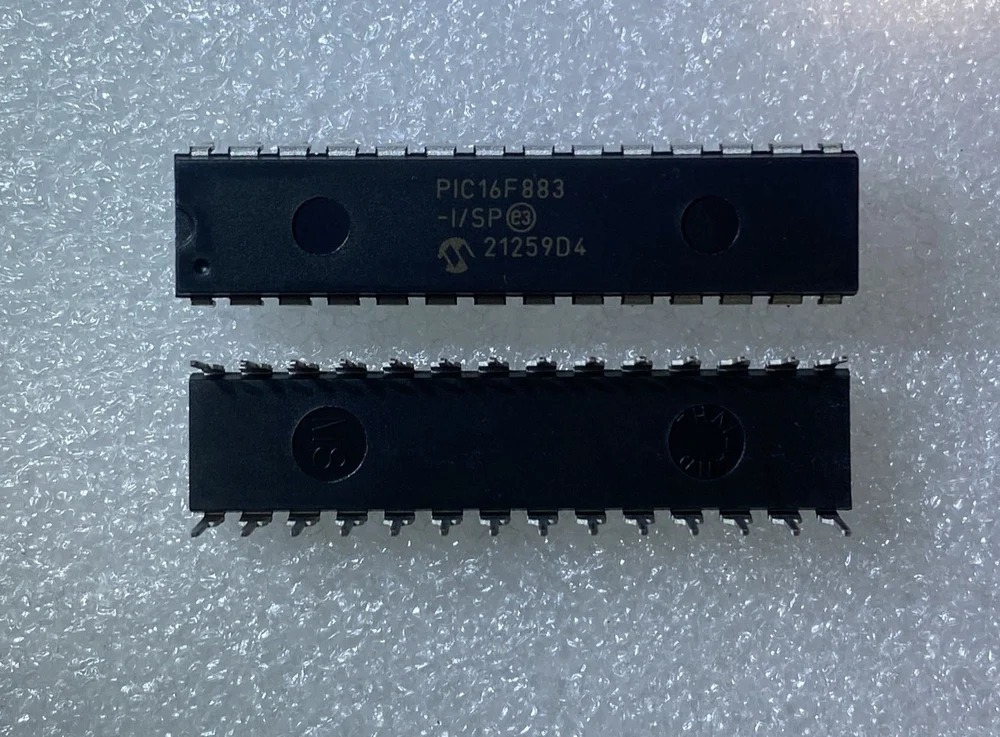

PIC16F883 IC Chip

Name: PIC16F883 IC Chip
Brand: Kirti Enterprises
Price: 60 INR
Availability: InStock

Price 60 INR/ Piece

Get a Price/Quote

MOQ : 150 Pieces

PIC16F883 IC Chip Specification

Output
Digital Outputs, PWM

Interface
USART, I2C, SPI

Components
Integrated IC

Operating Temperature
-40C to +85C

IP Rating
Not Rated

Power Supply
3.0V to 5.5V DC

Response Time
Instruction Cycle: 200 ns at 20 MHz

Power Source
External DC Supply

Input
Digital/Analog Inputs

Thermal Conductivity
Standard for ICs

Usage
Embedded Applications, Control Systems

Processor Speed
20 MHz

Sensors Specification
Supports analog sensor interfacing

Features
In-Circuit Serial Programming (ICSP), Brown-out Reset, Power-on Reset, Enhanced Capture/Compare/PWM modules

Display Type
No Display

Resolution
10-bit A/D Converter

Product Type
Microcontroller IC

Application
Automation, Consumer Electronics, Motor Control

Rated Voltage
5V

Supply Voltage
2.0V to 5.5V

Size
18-Pin PDIP/SOIC/SSOP

Dimension (L*W*H)
23mm x 7mm x 3mm (for PDIP)

Function
8-bit CMOS Flash Microcontroller

Color
Black

Weight
Approx. 2g

Capacity
7K Bytes Flash Memory

Thickness
Standard IC Profile

Current Rating
Max 200mA per pin

Frequency
20 MHz Max

Power Consumption
Low Power

Pin Count
18 pins

Oscillator Options
Internal 8 MHz; External up to 20 MHz

Instruction Set
35 Instructions

Watchdog Timer
Yes

RoHS Compliance
Yes

EEPROM
256 Bytes

RAM
368 Bytes

Package Type
PDIP, SOIC, SSOP

Programming Voltage
12V (for programming mode)

Comparator Modules
2

Manufactured By
Microchip Technology

ADC Channels
11 channels

ESD Protection
Human Body Model (HBM) compliant

Mounting Type
Through Hole or Surface Mount

Data Retention
40 years (typical for flash memory)

Timers
3 (TMR0, TMR1, TMR2)

LED Indicator
No

PIC16F883 IC Chip Trade Information

Minimum Order Quantity
150 Pieces

FOB Port
Delhi

Payment Terms
Cash in Advance (CID)

Supply Ability
1500 Pieces Per Month

Delivery Time
3 Days

Main Export Market(s)
Asia

Main Domestic Market
All India

About PIC16F883 IC Chip

The PIC16F883 is an 8-bit CMOS Flash-based microcontroller from Microchip Technology. It features a 14 KB Flash program memory, 368 bytes of RAM, and 256 bytes of EEPROM.

8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O

8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O
8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O
8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O

8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O
8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O

Other Features:
1. In-Circuit Serial Programming (ICSP).
2. In-Circuit Debug (ICD).
3. Power-on Reset (POR) and watchdog timer (WDT).
4. Sleep mode for power-saving

Applications:
1. The PIC16F883 is suitable for a variety of applications, including:
2. Automotive: Engine control, ABS, airbag systems.
3. Industrial: Control systems, instrumentation.
4. Appliances: Home automation, washing machines, refrigerators.
5. Consumer Electronics: Audio devices, image sensors.

Versatile Analog and Digital Integration

Equipped with 11 ADC channels and multiple digital I/O pins, the PIC16F883 allows developers to seamlessly interface with sensors, actuators, and external peripherals. Its integrated communication protocols (USART, I2C, and SPI) streamline data exchange between other ICs and modules, making it highly adaptable for control systems and automation projects.

Robust Performance and Reliable Operation

Designed to operate in harsh conditions, the PIC16F883 supports a wide temperature range (-40C to +85C) and provides robust features like Brown-out and Power-on Reset, Watchdog Timer, and enhanced ESD protection. With In-Circuit Serial Programming (ICSP), firmware updates and debugging can be performed conveniently without removing the chip from the board.

Energy-Efficient Microcontroller for Modern Applications

Consuming minimal power, the PIC16F883 is suitable for battery-powered devices and low-power embedded designs. Its efficient instruction set enables fast processing-200 ns per instruction at 20 MHz-allowing real-time control in demanding automation and consumer electronics environments.

FAQ's of PIC16F883 IC Chip:

Q: How is the PIC16F883 programmed and what voltage does it require?

A: The PIC16F883 can be programmed using In-Circuit Serial Programming (ICSP), facilitating updates and debugging without desoldering the chip. For programming mode, it requires a programming voltage of 12V supplied externally.

Q: What are the typical applications and usages of the PIC16F883 microcontroller?

A: This chip is widely used in embedded systems, automation controls, consumer electronics, and motor control projects. Its versatile analog and digital capabilities, including PWM, ADC channels, and multiple communication interfaces, make it suitable for sensor interfacing and system control.

Q: When should I choose this microcontroller over other models?

A: Choose the PIC16F883 when you require moderate memory (7K bytes of flash), extensive analog capabilities (11 ADC channels), low power consumption, and robust reliability features. It is ideal for projects needing both analog and digital integration with flexible programming and mounting options.

Q: Where can this IC chip be mounted or installed?

A: The PIC16F883 is offered in 18-pin PDIP, SOIC, and SSOP packages, allowing both through-hole and surface mount installations on printed circuit boards. Its compact size ensures it fits in space-constrained designs.

Q: What is the process for interfacing sensors with the PIC16F883?

A: Sensors (analog or digital) can be connected to the 11 available ADC channels or digital input pins. The onboard 10-bit A/D converter facilitates precise measurement, while communication peripherals (USART, I2C, SPI) allow seamless module interfacing.

Q: How does the microcontroller ensure data and system reliability?

A: With data retention up to 40 years, built-in Watchdog Timer, Brown-out and Power-on Reset, and HBM-compliant ESD protection, the PIC16F883 ensures consistent and secure operation even in demanding or unstable environments.

Q: What benefits does the PIC16F883 offer for dealers and wholesalers?

A: For dealers and wholesalers, the PIC16F883 provides a cost-effective, reliable solution with broad application appeal in India's automation, electronics, and control system markets. Its RoHS compliance and robust feature set make it attractive for diverse customer requirements.
